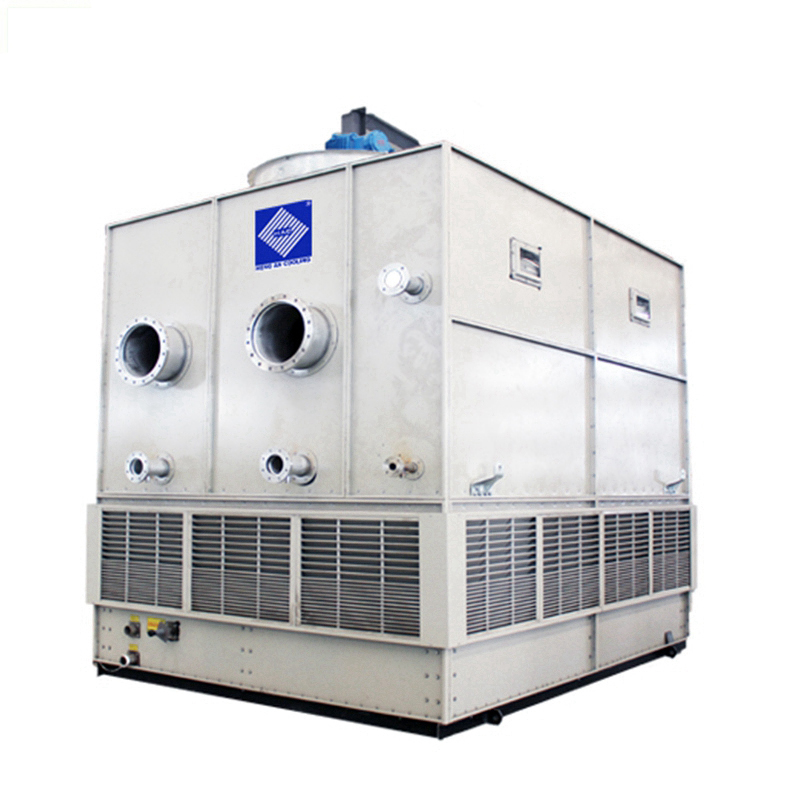

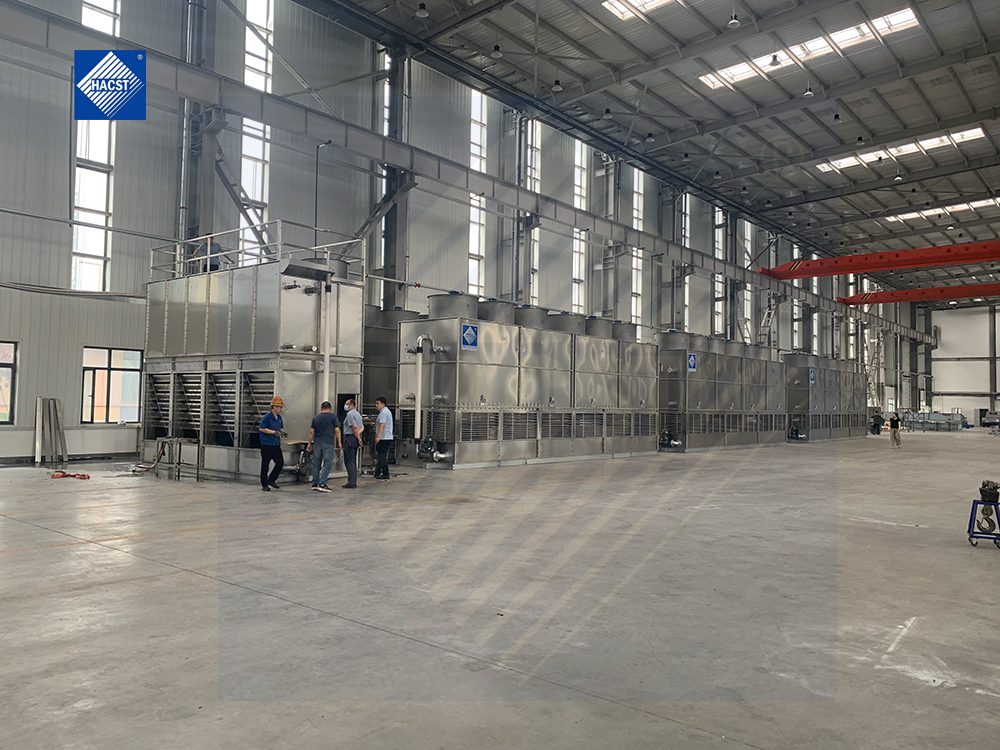

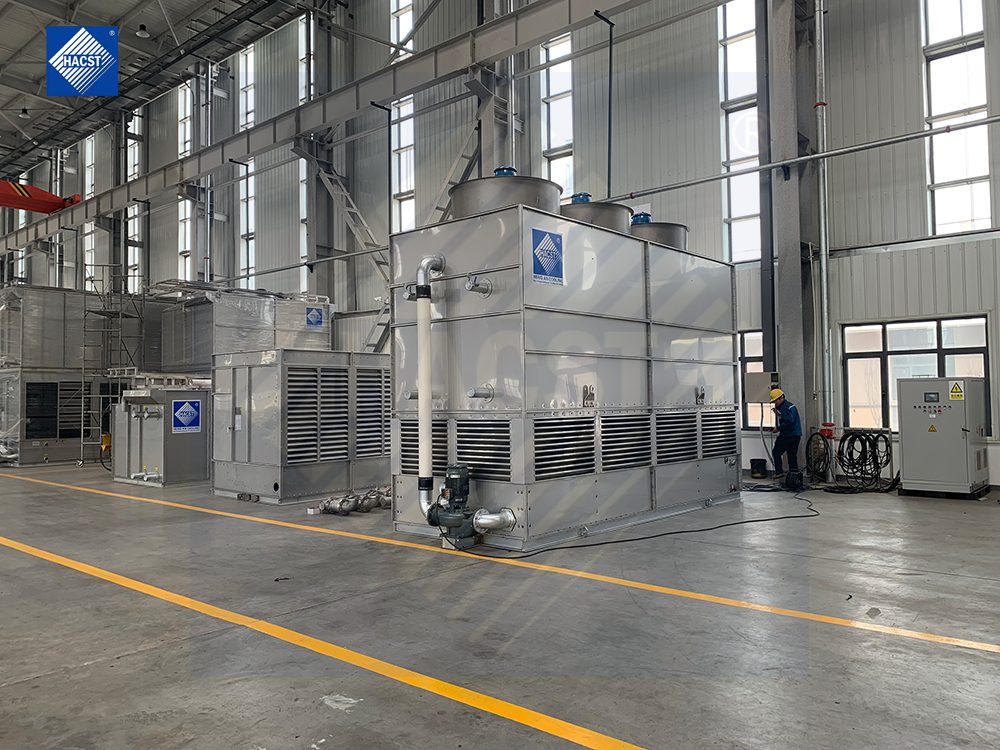

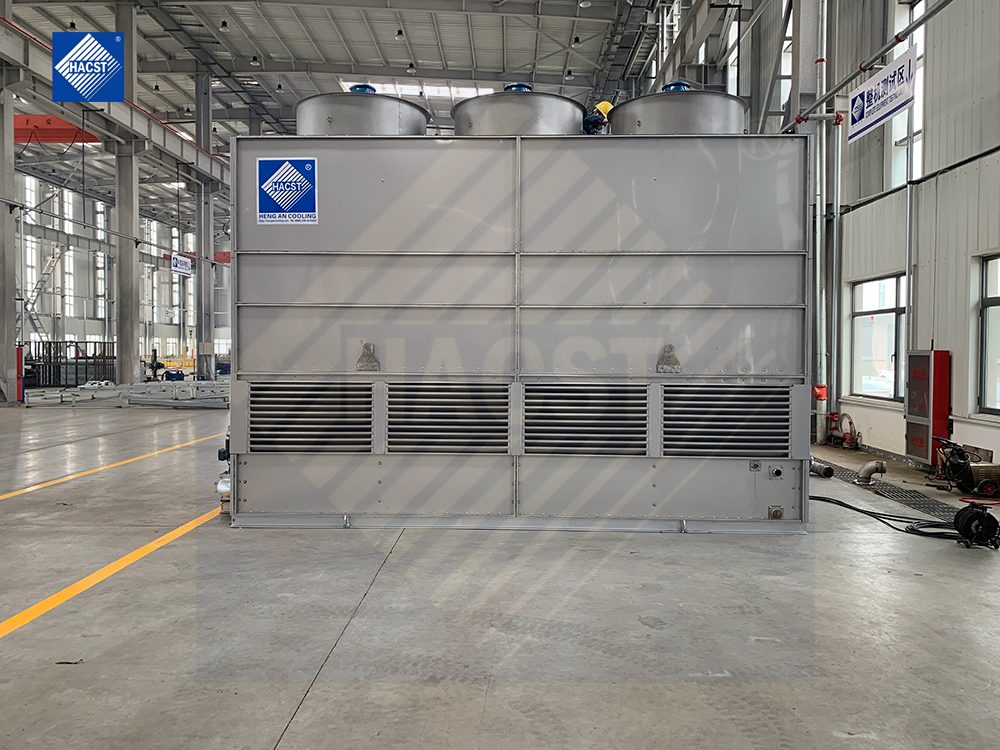

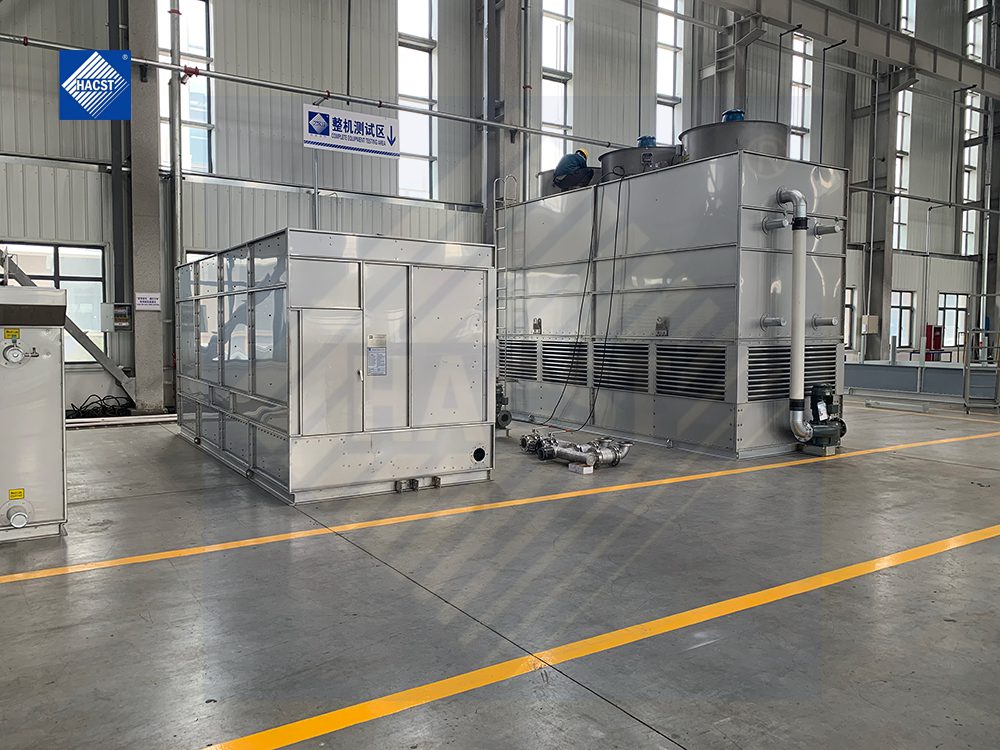

BNX Counterflow Closed Circuit Cooling Tower

The BNX counterflow closed circuit cooling tower is a specialized cooling system designed for industrial and commercial applications requiring efficient heat rejection while maintaining a clean, closed-loop process fluid circuit. Its unique design, particularly the absence of traditional infill, enhances heat transfer capacity, making it suitable for demanding cooling tasks.

1. Design and Operational Mechanics

The BNX series operates on a counterflow principle, where air and water flow in opposite directions to maximize heat transfer efficiency. Below is a detailed breakdown of its components and operation:

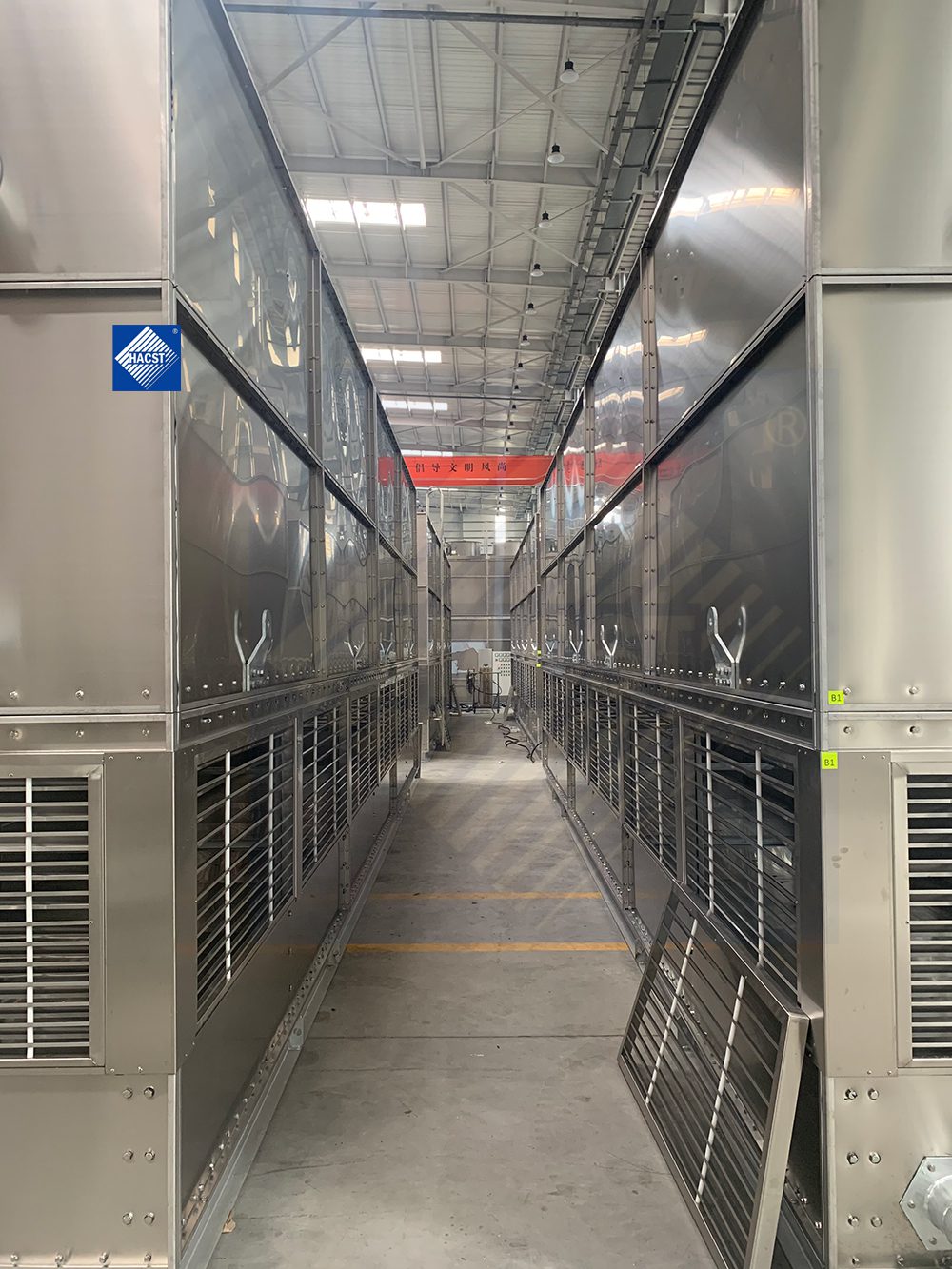

• Air Flow:
  • Fresh air is drawn into the tower through a bottom air inlet, typically via axial or centrifugal fans.
  • The air moves upward, passing over the coil unit that contains the process fluid.
  • As the air interacts with the sprayed water, it absorbs heat, becoming saturated hot air.
• Water Flow:
  • Spraying water is distributed over the coil unit, flowing downward in a counterflow direction relative to the air.
  • The water absorbs heat from the process fluid inside the coil, cooling the fluid.
  • A specially designed drift eliminator captures water droplets from the exiting air stream, preventing water loss and ensuring that only heat-laden air is exhausted by the fans.
  • The collected water is directed to a water basin at the base of the tower for recirculation and secondary spraying.
• Coil Unit:
  • The coil unit houses the process fluid in a closed loop, ensuring it remains isolated from the external environment.
  • The absence of infill (traditional fill media used in open cooling towers) provides additional space to enlarge the coil’s heat rejection area, increasing the tower’s cooling capacity.
  • Coils are typically made of materials like stainless steel or copper to resist corrosion and enhance heat transfer.
• No-Infill Design:
  • Traditional cooling towers use fill media to increase the surface area for water-air interaction. The BNX series eliminates this, relying solely on the coil surface for heat exchange.
  • This reduces maintenance needs (no fill media to clean or replace) and allows for a larger coil, improving heat rejection efficiency.
• Fans and Drift Eliminators:
  • Fans (often variable-speed) expel the hot, saturated air, maintaining airflow through the tower.
  • Drift eliminators are engineered to minimize water loss, typically achieving drift rates as low as 0.001% of the circulating water flow, which enhances water conservation.

2. Technical Advantages

The BNX series offers several technical advantages due to its closed-loop, no-infill design:

• Enhanced Heat Rejection:
  • The enlarged coil area compensates for the lack of fill media, providing a high heat transfer rate.
  • The counterflow configuration allows for a closer approach to the wet bulb temperature (the lowest theoretical temperature achievable by evaporative cooling), typically within 3–5°C, compared to 7–10°C for air-cooled systems.
• Contamination-Free Operation:
  • The closed-loop system isolates the process fluid from external contaminants like dust, debris, or biological growth (e.g., algae or bacteria).
  • This reduces fouling and scaling, which can degrade performance in open cooling towers.
• Water and Energy Efficiency:
  • Recirculation of water via the basin and drift eliminator minimizes water loss, saving up to 95% of water compared to once-through systems.
  • Lower process fluid temperatures (10–20°C below air-cooled systems) reduce the energy required for downstream equipment like chillers or compressors.
• Compact Footprint:
  • By integrating the functions of a cooling tower and heat exchanger, the BNX series reduces the need for additional piping and equipment.
  • This lowers installed costs and space requirements, making it ideal for applications with limited space, such as data centers or urban facilities.
• Low Maintenance:
  • The absence of fill media eliminates the need for frequent cleaning or replacement.
  • The closed loop reduces chemical treatment requirements, as the process fluid is not exposed to the atmosphere.
  • Durable coil materials and drift eliminators further extend the system’s operational life.

3. Comparison with Alternative Cooling Systems

The BNX closed circuit cooling tower outperforms other cooling technologies in several key areas:

• Vs. Cooling Tower + Heat Exchanger Combination:
  • Advantage: The BNX series integrates both functions into a single unit, reducing system complexity, piping, and footprint.
  • Performance: Achieves a closer approach to wet bulb temperature (e.g., 3–5°C vs. 5–7°C for separate systems) and reduces fouling, improving process efficiency.
  • Cost: Lower installation and maintenance costs due to simplified design.
• Vs. Air-Cooled Systems:
  • Advantage: Provides 10–20°C lower process fluid temperatures, reducing energy consumption for downstream equipment.
  • Space: Requires less space than air-cooled heat exchangers, which need large surface areas for heat dissipation.
  • Energy: Consumes less fan power due to evaporative cooling’s higher efficiency compared to dry cooling.
• Vs. Open Cooling Towers:
  • Advantage: The closed loop prevents process fluid contamination, eliminating fouling-related performance losses.
  • Maintenance: Requires less frequent cleaning and chemical treatment than open towers, which are prone to biological growth and scaling.
  • Reliability: Ensures consistent performance over time, critical for applications like data centers or induction furnaces.
• Vs. Once-Through Systems:
  • Advantage: Saves up to 95% of cooling water by recirculating it, reducing environmental impact and operational costs.
  • Compliance: Meets stringent water usage regulations in water-scarce regions.

4. Applications

The BNX series is versatile and suited for a wide range of cooling applications, including:

• Water-Source Heat Pumps: Provides efficient cooling for HVAC systems in commercial buildings.
• Cooling Special Fluids: Handles sensitive fluids (e.g., glycols or oils) that require contamination-free cooling.
• Self-Contained Cooling Units: Supports modular cooling systems for industrial processes.
• Compressor Jacket Cooling, Intercooling, Aftercooling: Maintains optimal temperatures for compressors in chemical or manufacturing plants.
• Chillers and Machine Jacket Cooling: Ensures reliable cooling for refrigeration systems and heavy machinery.
• Free Cooling Applications: Leverages ambient conditions to reduce chiller operation in cooler climates.
• Induction Furnaces: Cools high-heat processes in metalworking industries.
• Data Centers: Provides energy-efficient cooling for server racks, minimizing downtime and energy costs.
• Consolidating Multiple Loads: Combines cooling for multiple processes into a single unit, reducing equipment costs.
• Hybrid Evaporative/Dry Cooling: Operates in dry mode during low ambient temperatures to save water.

5. Potential Specifications (Generalized)

While specific BNX series specifications depend on the manufacturer and model, typical characteristics for counterflow closed circuit cooling towers include:

• Cooling Capacity: Ranges from 100 kW to several MW, depending on size and application.
• Flow Rates:
  • Process fluid: 10–500 m³/h.
  • Spray water: 50–1000 m³/h, recirculated.
• Fan Power: 5–50 kW, often with variable-frequency drives (VFDs) for energy optimization.
• Materials:
  • Coils: Stainless steel, copper, or galvanized steel for corrosion resistance.
  • Casing: Fiberglass-reinforced plastic (FRP) or stainless steel for durability.
• Drift Loss: ≤0.001% of circulating water flow.
• Approach Temperature: 3–5°C to wet bulb temperature.
• Footprint: Compact, typically 2–10 m² per MW of cooling capacity.
• Noise Levels: 60–80 dB(A) at 10 meters, with low-noise fan options available.

Note: For precise specifications, consult the manufacturer’s datasheet for the BNX series, as these vary by model and customization.

6. Environmental and Economic Benefits

• Environmental Impact:
  • Water savings of up to 95% compared to once-through systems reduce strain on local water resources.
  • Lower energy consumption contributes to reduced greenhouse gas emissions.
  • Hybrid evaporative/dry cooling modes optimize water and energy use based on ambient conditions.
• Economic Benefits:
  • Reduced Operating Costs: Lower energy and water consumption, combined with minimal maintenance, reduce total cost of ownership.
  • Lower Capital Costs: Integrated design eliminates the need for separate heat exchangers and extensive piping.
  • Longevity: Durable materials and reduced fouling extend equipment lifespan, minimizing replacement costs.

7. Limitations and Considerations

While the BNX series offers significant advantages, some considerations include:

• Initial Cost: Higher upfront cost compared to open cooling towers, though offset by long-term savings.
• Water Treatment: Spray water requires treatment to prevent scaling or biological growth, though less intensive than open systems.
• Climate Dependence: Performance is optimized in humid climates; in extremely dry conditions, evaporative efficiency may decrease, though hybrid modes can mitigate this.
• Fan Energy: While more efficient than air-cooled systems, fans still consume energy, particularly for large cooling loads.

8. Conclusion

The BNX counterflow closed circuit cooling tower is a high-performance, versatile solution for industrial and commercial cooling applications. Its no-infill design maximizes coil heat rejection area, while the closed-loop system ensures clean, reliable operation with minimal maintenance. Compared to alternative cooling systems, it offers superior energy and water efficiency, reduced environmental impact, and lower total costs. The tower’s compact footprint and ability to handle diverse applications—ranging from data centers to induction furnaces—make it an excellent choice for modern cooling needs.
