Air-Cooled Heat Exchangers (ACHE)

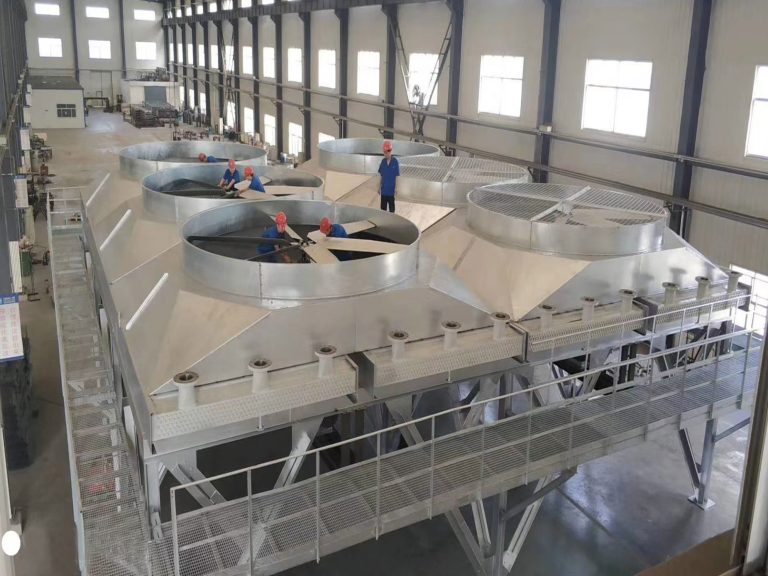

1. What Is an Air-Cooled Heat Exchanger (ACHE)?
HACST air-cooled heat exchangers (ACHEs) transfer heat from process fluids to ambient air through finned-tube bundles, reducing or eliminating cooling-water demand. Forced-draft and induced-draft packages can be engineered for oil and gas, petrochemical, power generation, refrigeration and process cooling.
Share process fluid, heat duty, inlet and outlet temperatures, design ambient, pressure drop, materials, fan control, noise requirements and applicable standards for a project-specific review.
2. How It Works
Hot water from the system is pumped to the top of the tower and distributed evenly over the fill media (heat exchange surface). As the water flows downward through the fill, a fan draws ambient air upward or across the tower. A small portion of the water evaporates, absorbing heat from the remaining water and lowering its temperature. The cooled water is then collected in the cold water basin at the bottom and returned to the system.
3. Key Features
- High heat transfer efficiency through direct water-air contact
- Simple structure and relatively low initial cost
- Effective cooling even in high ambient temperatures
- Suitable for large-scale heat rejection
4. Common Applications
Open cooling towers are commonly used in power plants, chemical processing, steel manufacturing, HVAC systems, data centers, and various industrial processes where large volumes of water need to be cooled economically.
While highly efficient and cost-effective, open cooling towers expose the process water to the atmosphere, which may lead to water loss through evaporation and drift, as well as potential scaling, corrosion, and bacterial growth (such as Legionella). Regular water treatment and maintenance are therefore essential.
5. Why Choose HACST?
40+ years of industry experience with strong R&D capability (20+ engineers, 10+ invention patents, cooperation with Shandong University and Xi’an Jiaotong University)
Internationally certified: ISO9001, ISO14001, ISO45001, CTI, CE, TÜV, BV, SGS, AS1210, and more
Professional international trade team of over 40 members, fluent in multiple languages
Full support for standard and highly customized solutions (OEM/ODM)
“HACST” and “Hengan” brands are well-recognized worldwide. Our equipment has been exported to over 100 countries and regions and serves as a trusted partner for global companies such as Coca-Cola, Mayekawa, Emerson, SRF, Hamon, and many others.
With strict quality control and comprehensive after-sales service, we are committed to providing reliable, efficient, and eco-friendly cooling solutions.
Welcome to contact us for inquiries or customized requirements. HACST looks forward to being your long-term partner!
Our Customers
Our Certificates
Some of Our Projects
Air-Cooled Heat Exchanger and Condenser Selection
An air-cooled heat exchanger (ACHE), often called a fin-fan cooler, transfers process heat to ambient air through finned-tube bundles. When the process duty is refrigerant condensation, the package is commonly specified as an air-cooled condenser. Final design depends on the process and site conditions—not terminology alone.
Core Design Data
| Required input | Engineering impact |
|---|---|
| Heat duty, process fluid and flow rate | Sets thermal surface, circuit design and bundle configuration. |
| Inlet / outlet temperatures and pressure drop | Defines thermal approach and allowable process resistance. |
| Design ambient and site climate | Guides air-side performance margin and fan selection. |
| Materials, corrosion, noise and standards | Shapes tube/fin material, coatings, layout, access and controls. |
Typical Applications
Configuration Choices That Matter
Evaluate forced-draft or induced-draft arrangement, finned-tube material, fan and VFD strategy, louver requirements, access platform, redundancy, winter operation and maintainability. API 661 requirements can be incorporated when the project specification calls for them.
Is an ACHE the same as an air-cooled condenser?
An ACHE is a broad equipment category. An air-cooled condenser is an ACHE configured specifically to condense a refrigerant.
What is a fin-fan cooler?
Fin-fan cooler is an industry term for an air-cooled exchanger using finned tubes and fans to reject process heat.
Can fan noise be controlled?
Yes. Fan diameter, speed, VFD controls, layout and acoustic treatment can be considered with the site noise limit.
What must be confirmed before quotation?
Provide duty, fluid, temperatures, pressure drop, ambient, materials, standards, plot space, noise and electrical requirements.
Send process and site data for a practical air-cooled heat exchanger recommendation.
