Large logistics and food distribution centers in Australia require extremely stable refrigeration systems, especially when dealing with high-volume chilled storage and fast-moving cold chain operations.
At the Woolworths Distribution Centre in Eastern Creek, Sydney, a refrigeration upgrade project was carried out using three sets of ZHX-3100 evaporative condensers to improve system efficiency, stability, and long-term operational reliability.
This project included full logistics delivery, unloading, and on-site installation coordination. The equipment was shipped from China to Australia in multiple containers and installed under strict site safety and scheduling requirements, as the distribution center remained partially operational during the upgrade process.
View Evaporative Condenser Product Series
Project Overview — High Demand Cold Chain Facility in Sydney
The Eastern Creek facility is one of the key logistics hubs supporting retail supply chains in Sydney and surrounding regions. As a major distribution center handling chilled and frozen food products, the refrigeration system must maintain consistent condensing performance even during peak summer temperatures in Australia.
Before the upgrade, the existing condenser system experienced rising condensing pressure during high ambient temperature periods, which directly affected compressor efficiency and overall refrigeration stability. The customer required a more reliable solution that could operate continuously under heavy load conditions.
After technical evaluation, the ZHX-3100 evaporative condenser was selected due to its high heat rejection capacity, stable performance in hot climates, and compatibility with large industrial ammonia and refrigerant systems commonly used in food logistics facilities.
Equipment Specification — ZHX-3100 System Configuration
Each ZHX-3100 unit was designed for high-capacity industrial cooling applications. The system includes optimized coil bundles, high-efficiency axial fans, and reinforced structural frames suitable for long-distance marine transportation and outdoor installation in coastal environments.
- Model: ZHX-3100 Evaporative Condenser
- Quantity: 3 units
- Application: Refrigerated warehouse & distribution cold chain system
- Location: Eastern Creek, Sydney, Australia
The system design focuses on maintaining stable condensing temperature under variable load conditions, especially during peak distribution hours when refrigeration demand fluctuates significantly.
Industrial Refrigeration System Solutions
Logistics & Shipping Process — From Factory to Australia

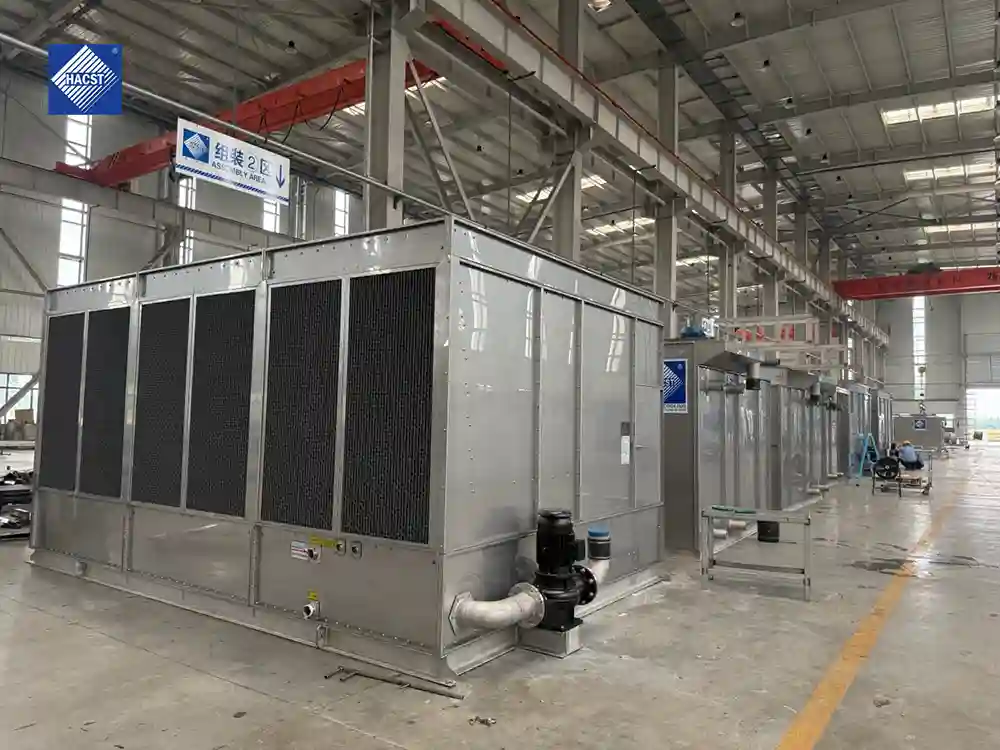

The equipment was prepared for international shipment using reinforced packaging and steel frame protection structures to ensure stability during long-distance transport. Because evaporative condensers include large heat exchange coils and mechanical components, vibration control and structural reinforcement are critical during shipping.

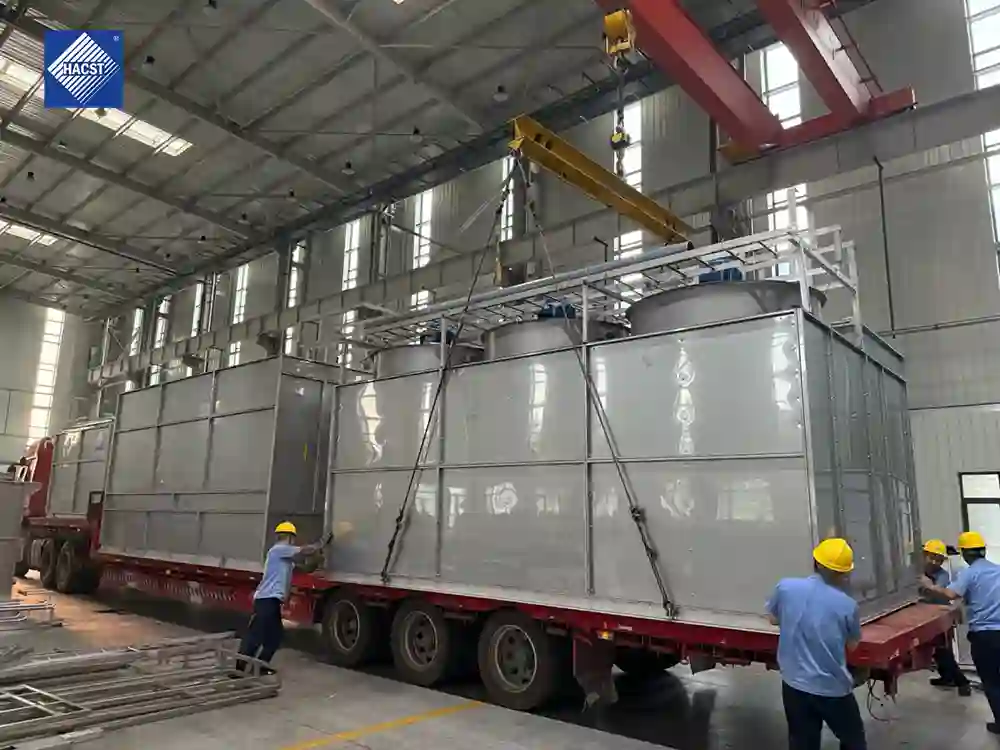

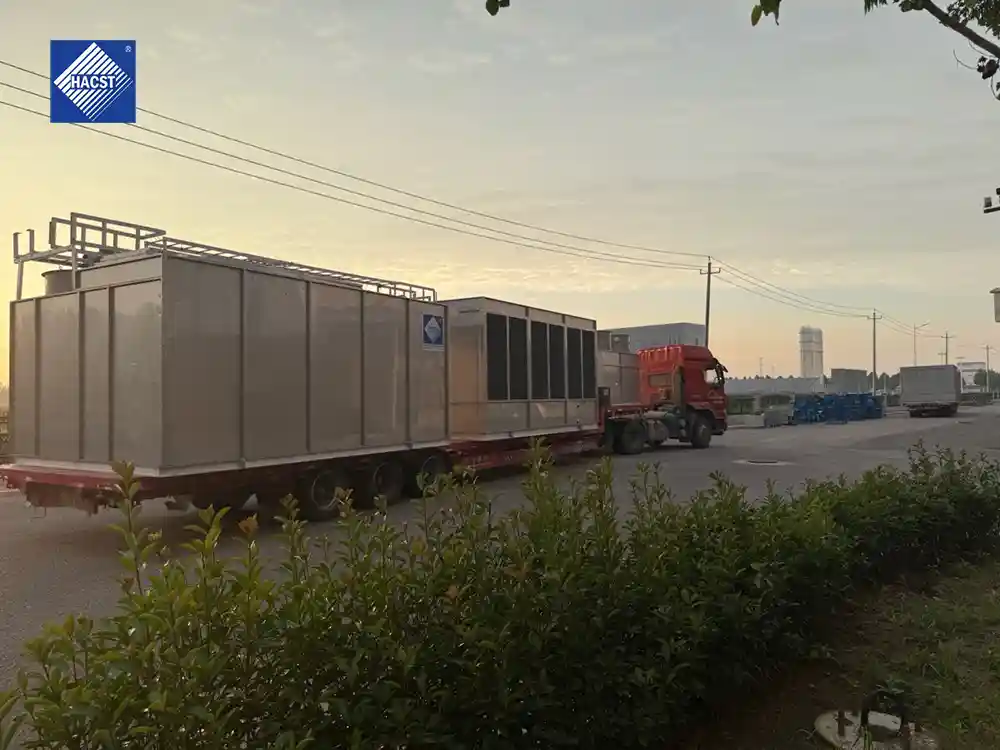

Two units were loaded and dispatched in the first batch, followed by the remaining unit after final inspection and packaging verification. The containers were shipped to the Port of Sydney, then transported by truck directly to the Eastern Creek site.
During the shipping stage, detailed packing lists, lifting points, and installation drawings were provided to the client’s logistics team to ensure smooth handling at destination.
On-Site Unloading — Coordinated Heavy Equipment Handling
Upon arrival at the site, unloading operations were carefully scheduled to match the distribution center’s working hours. Since the facility remained partially active, crane operation and truck access were coordinated to avoid disrupting logistics flow.
The three ZHX-3100 units were lifted one by one using heavy-duty cranes. Site engineers inspected structural integrity immediately after unloading, confirming that no deformation or transport damage occurred.
This stage is critical for large cooling equipment projects because improper handling can affect coil alignment, fan balance, and long-term operational stability.

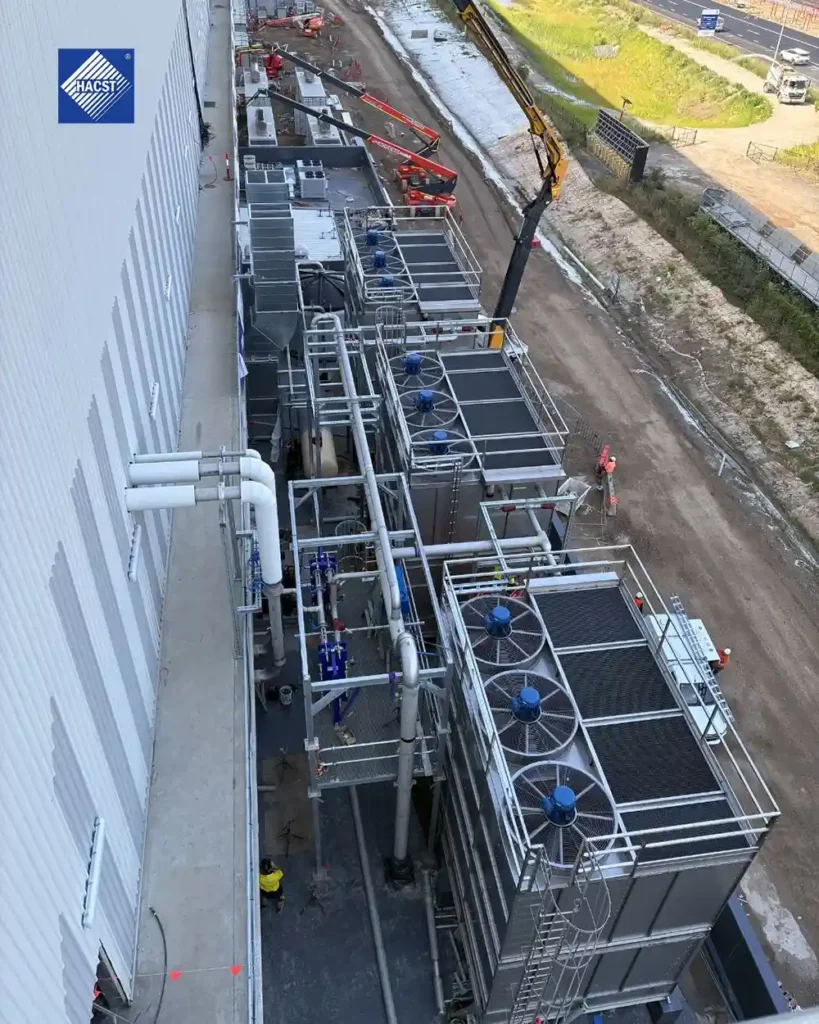

Installation at Woolworths Distribution Centre
Installation was carried out in coordination with the site mechanical contractor. The main challenge was integrating the new condensers into an existing refrigeration loop without causing long downtime to the cold storage system.
Piping connections were adjusted on-site to match existing ammonia line layouts. Electrical control integration was completed with VFD fan control systems to improve energy efficiency and maintain stable condensing pressure under variable load conditions.
Due to Australia’s high summer ambient temperatures, particular attention was given to airflow optimization and heat rejection performance. The installation layout ensured sufficient spacing between units to prevent hot air recirculation.
Performance Improvement After Commissioning
After commissioning, the refrigeration system showed noticeable improvement in operational stability. The condensing pressure became more stable during peak load hours, and compressor running conditions improved significantly.
The distribution center reported smoother refrigeration performance during high dispatch periods, especially when large volumes of chilled goods were processed simultaneously.
- Improved condensing stability under high ambient temperature
- Reduced compressor load fluctuation
- Better energy efficiency under partial load conditions
- More stable cold storage temperature control
In large logistics environments like Woolworths distribution networks, even small improvements in refrigeration stability can significantly affect operational efficiency and product quality assurance.
Engineering Value of This Project
This project demonstrates how evaporative condenser systems can be successfully applied in large-scale retail distribution centers. Unlike traditional industrial plants, logistics hubs require flexible load handling, fast response to demand changes, and high reliability during continuous operation.
The ZHX-3100 system provided a balance between capacity, energy efficiency, and operational stability, making it suitable for modern cold chain logistics environments in Australia.
Contact HACST Cooling for Project Consultation
Conclusion
The installation of three ZHX-3100 evaporative condensers at Woolworths Distribution Centre in Eastern Creek, Sydney represents a successful upgrade for a high-demand cold chain facility. From manufacturing and shipping to installation and commissioning, the project was executed with strict engineering control and coordination.
Today, the system continues to support stable refrigeration performance for one of Australia’s key retail logistics hubs, ensuring reliable temperature control for chilled and frozen food distribution.
